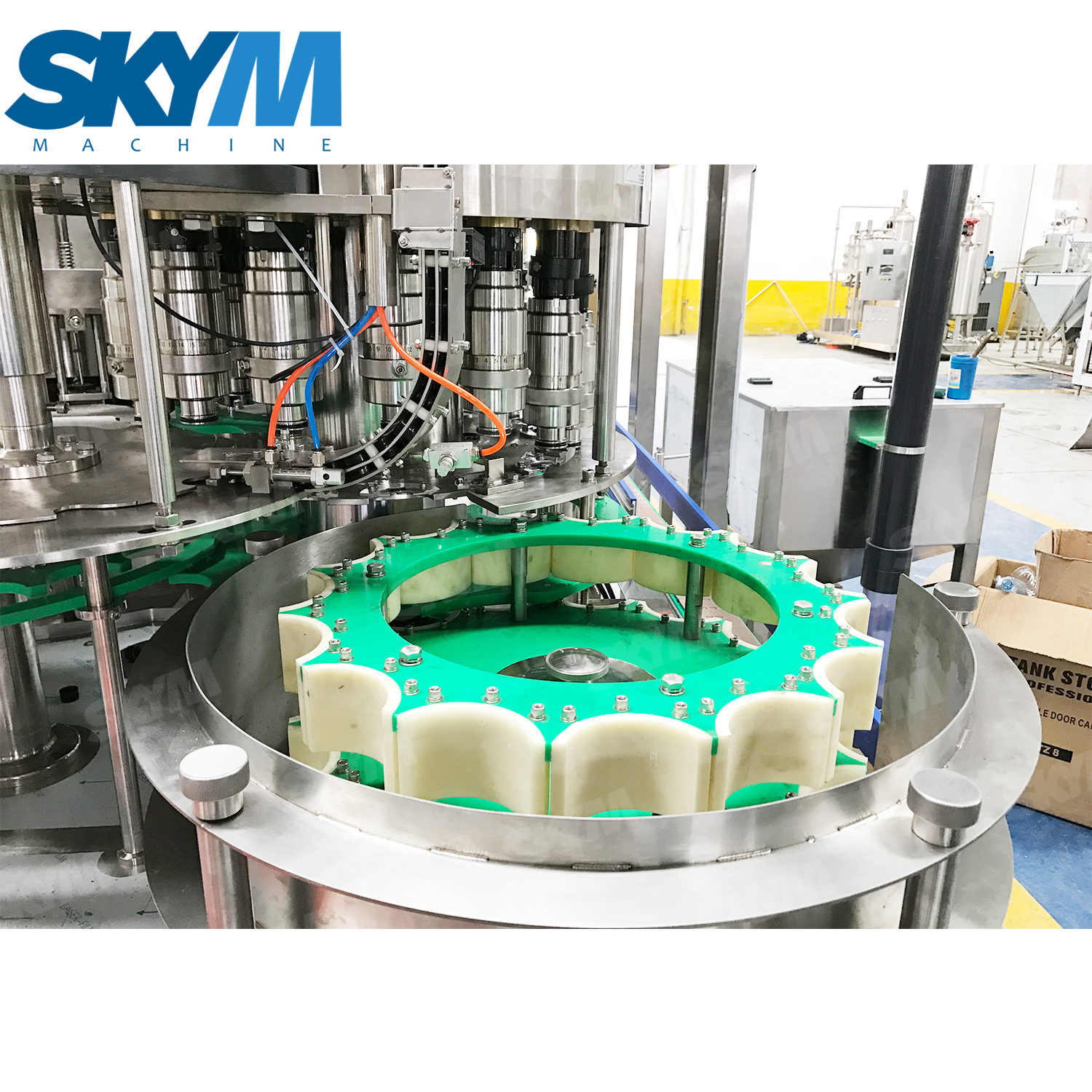

Plastic Bottle Carbonated Soft Drinks Bottling Machine
DCGF-series rinsing, filling, Capping 3-in-1 monobloc machine introduced by foreign advanced gas-filling technique is a high performance fully automatic liquid packaging equipment. Machine for carbonated beverage packaging machine has the following characteristics: filling tank, filling valves and other components in direct contact with the material are high-quality stainless steel or non-toxic materials, in line with food hygiene requirements: use of resistant seals hot rubber to meet the high-temperature sterilization process of user requirements: PCL programmable controller used to realize from the bottle into the machine to the packaging of finished using the automatic control of frequency control, easy to transfer the user to adjust prepared to meet the different process on the capacity requirements; using isobaric filling principle and popular spring-loaded valves, ensuring the quality of the beverage, using an advanced magnetic clutch adjustment screw cap torque device to ensure the quality of the blocks.
Product name: Plastic Bottle Carbonated Soft Drinks Bottling Machine
Products Parameter
| Model | CGF14-12-5 | CGF16-16-5 | CGF24-24-8 | CGF32-32-10 | CGF40-40-12 | CGF50-50-15 | CGF60-60-15 |
| Capacity(500ml/bottle/hour) | 2000-3000 | 3000-4000 | 6000-8000 | 8000-10000 | 12000-15000 | 15000-18000 | 18000-25000 |
| Suitable bottle diameter(mm) | Φ=50-100 H=170-330(200ml-2000ml) | ||||||
| Power Supply(KW) | 2.42 | 3.12 | 3.92 | 3.92 | 5.87 | 7.87 | 11.37 |
| Overall dimension(L*W*H)mm | 2360*1770*2700 | 2760*2060*2700 | 2800*2230*2700 | 4275*2960*2700 | 4700*3320*2700 | 5900*4150*2700 | 6700*5160*2700 |
| Weight(Kg) | 2800 | 3650 | 4800 | 6000 | 7500 | 9800 | 11500 |

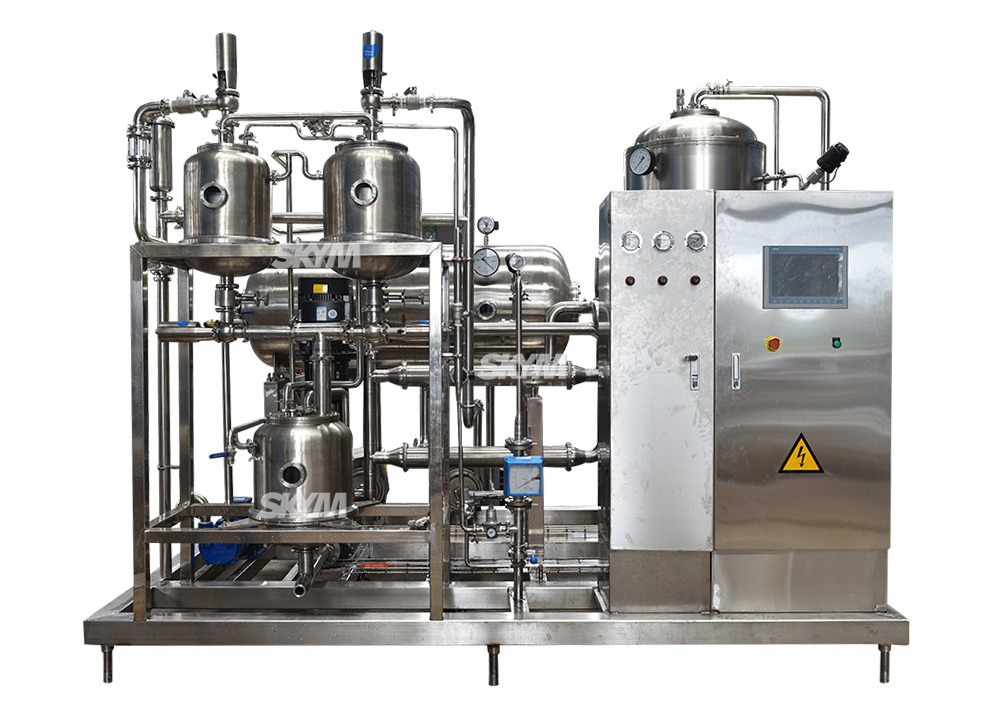

Beverage Drink Mixing Machine
This beverage mixer for the production of all kinds of carbonated beverage, (water, syrup, carbon dioxide) of carbonated proportions, such as lemon, cola, fruit juice and other soft drinks, beverage production line equipment is the main equipment. (In particular, the high-grade key beverage production equipment)
1 The machine with a chemical industry advanced technology - static mixer (ie carbonizer), its gas-liquid mass transfer area is large, small pressure loss, high efficiency, low energy consumption, simple structure, reliable performance and the use of noise small multi-stage centrifugal pumps, so that the whole performance is guaranteed.
2 Mixing ratio accurate, easy to adjust, the machine does not require replacement parts, you can easily yield and the ratio of syrup and water was adjusted.
3 Reflow machine uses carbon dioxide oxygen, carbon dioxide gas can save, but also to achieve the purpose of deoxy make deoxygenated water has a good pre-carbonization effect.
4 The machine easily adjust the air content, according to the requirements of beverage containing gas through proper operation and adjustment is completed.
5 The machine set up perfect automatic control system with motor coordination, simple structure, continuous production, automation features.
Machine Details

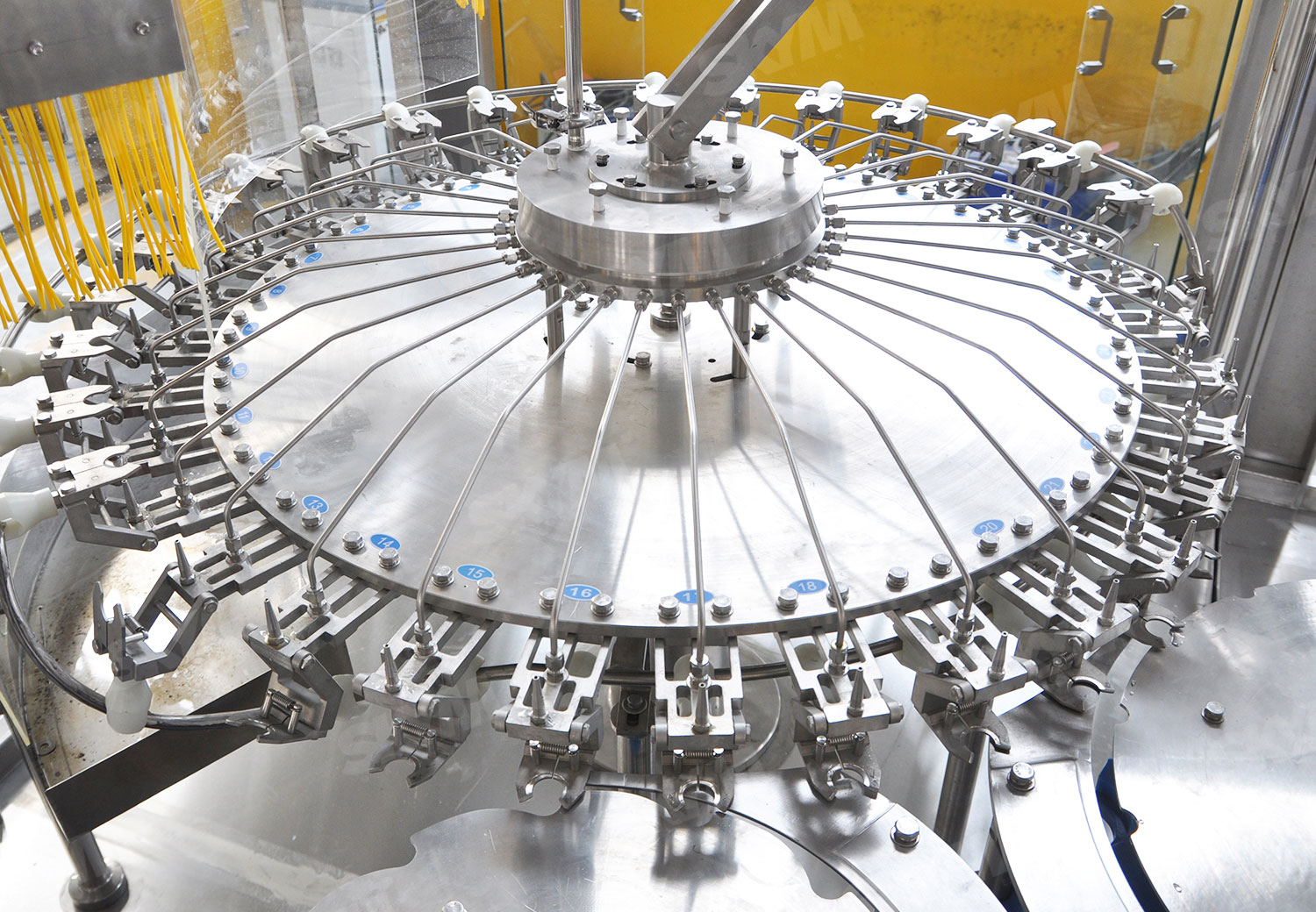

Rinser

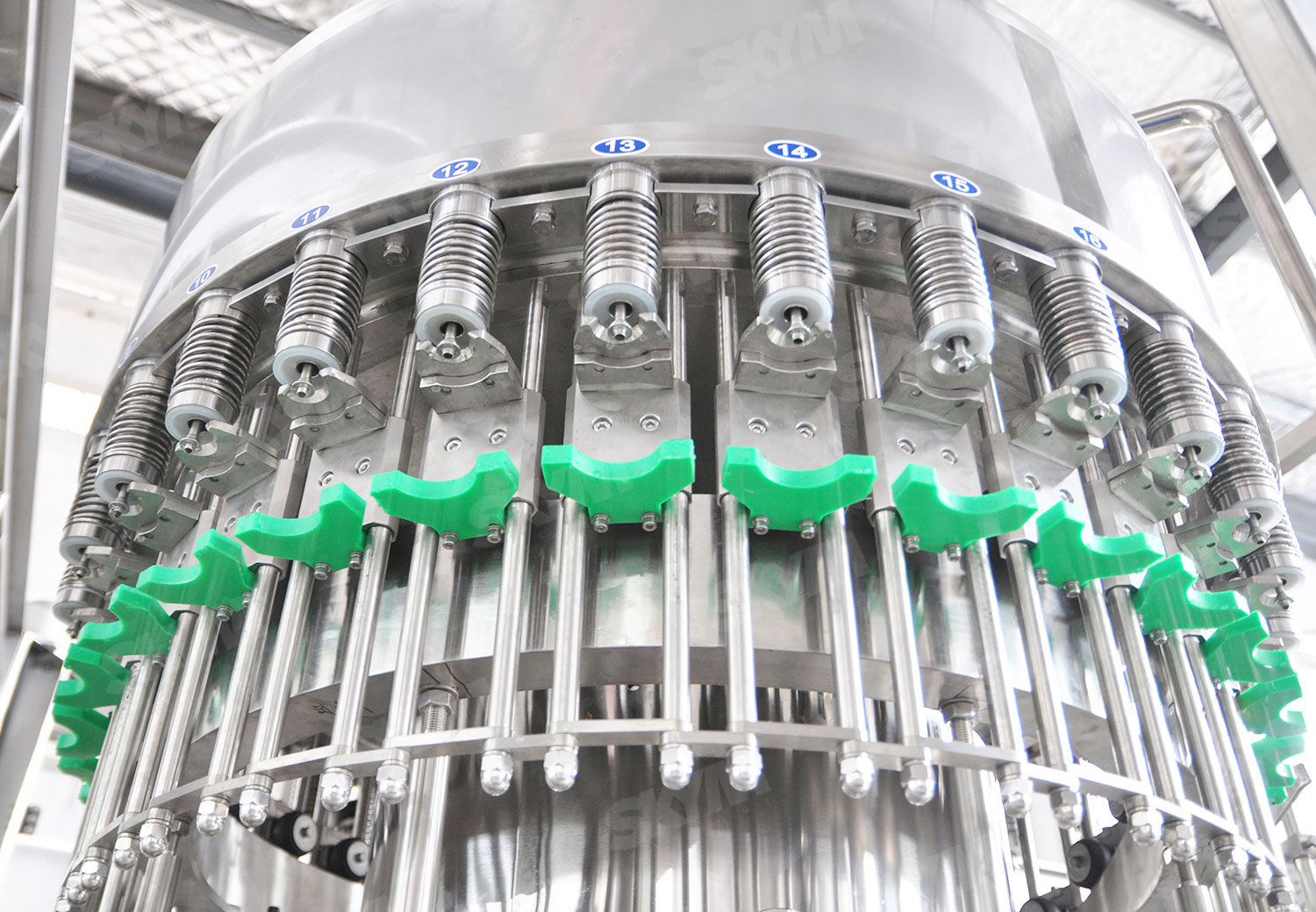

Filler

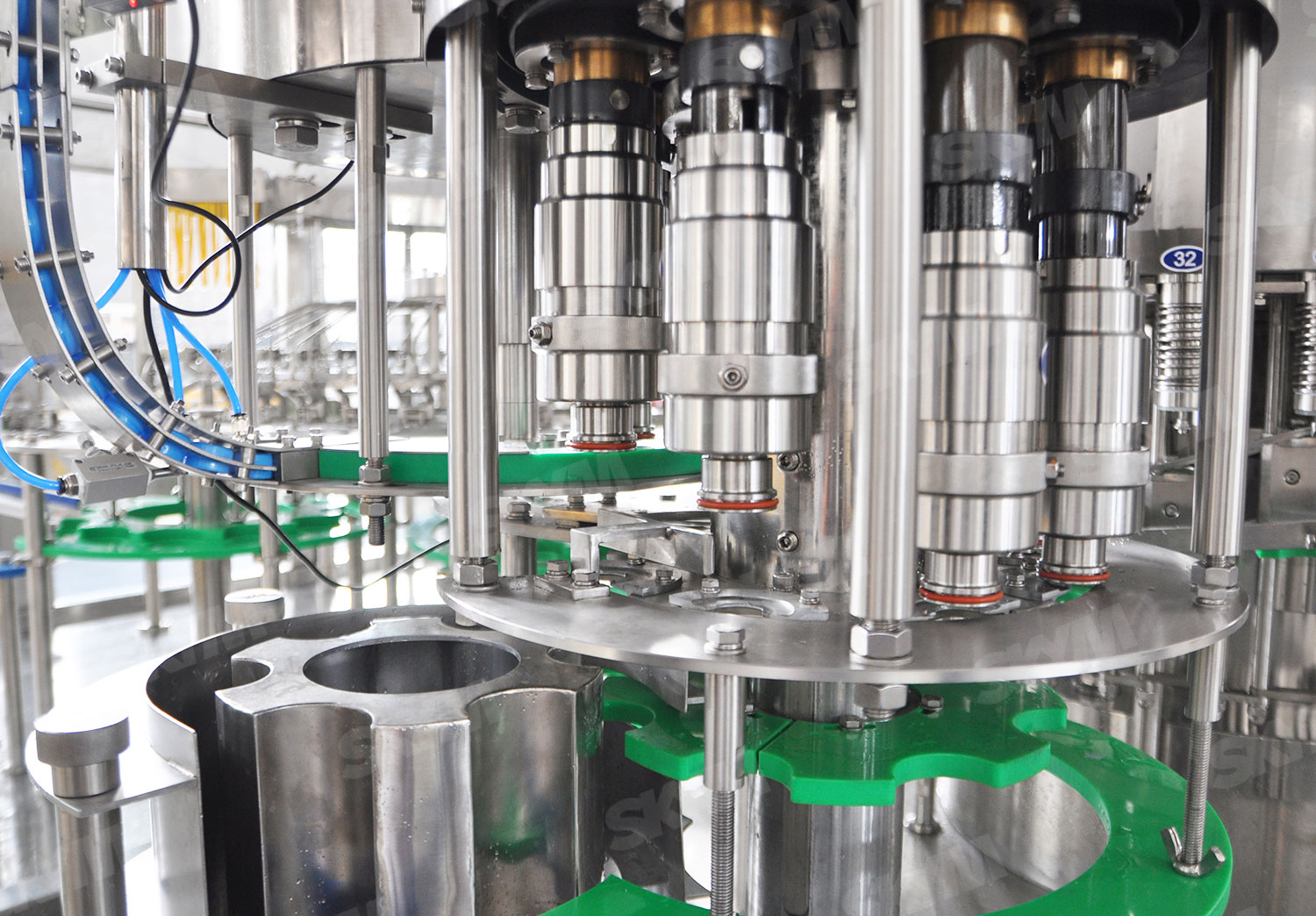

Capper
FAQ
1. A: Are you factory?How many workers do you have?
B: Yes,we are factory. our factory is located in zhangjiagang near from shanghai. We have about 50 workers in our factory.
2. A: What about after sale service?
B: 12months of electrical part and 18months of mechanical part after machine installed and running normally.
3. A: What about installation?
B: Our engineer can be sent to your country. but customer should pay the air tickets and 100usd as salary per person per day. besides, customer should arrange the accommodation for them during the trip.
4. A: What do we do if we encounter problem about the machine ?
B: Show us the picture or video of the problem. If the problem is from small machine, we will send you solution by video. If the problem is from large machine, our engineer will go to your factory (customer will pay the fee during the trip).
5. A: How can you control the quality and delivery?
B: All our machines will be tested before packaging. wooden packaing is strong and safety for long delivery.
