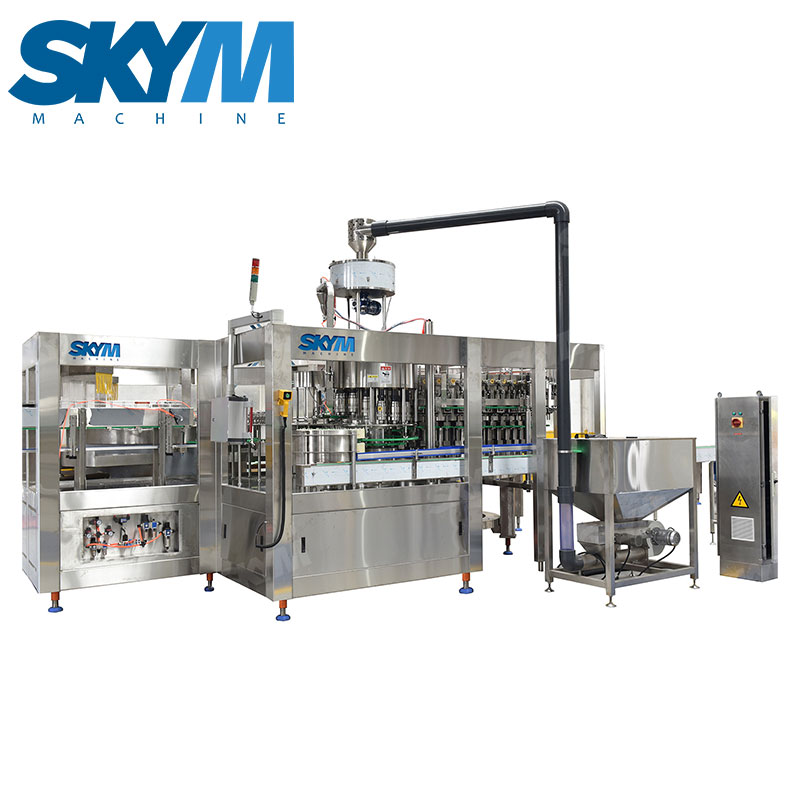

Plastic Bottle Carbonated Soft Drinks Bottling Machine /Carbonated Soft Drink Filling Machine Line
DCGF-series rinsing, filling, Capping 3-in-1 monobloc machine introduced by foreign advanced gas-filling technique is a high performance fully automatic liquid packaging equipment. Machine for carbonated beverage packaging machine has the following characteristics: filling tank, filling valves and other components in direct contact with the material are high-quality stainless steel or non-toxic materials, in line with food hygiene requirements: use of resistant seals hot rubber to meet the high-temperature sterilization process of user requirements: PCL programmable controller used to realize from the bottle into the machine to the packaging of finished using the automatic control of frequency control, easy to transfer the user to adjust prepared to meet the different process on the capacity requirements; using isobaric filling principle and popular spring-loaded valves, ensuring the quality of the beverage, using an advanced magnetic clutch adjustment screw cap torque device to ensure the quality of the blocks.
DCGF-series rinsing, filling, Capping 3-in-1 monobloc machine introduced by foreign advanced gas-filling technique is a high performance fully automatic liquid packaging equipment. Machine for carbonated beverage packaging machine has the following characteristics: filling tank, filling valves and other components in direct contact with the material are high-quality stainless steel or non-toxic materials, in line with food hygiene requirements: use of resistant seals hot rubber to meet the high-temperature sterilization process of user requirements: PCL programmable controller used to realize from the bottle into the machine to the packaging of finished using the automatic control of frequency control, easy to transfer the user to adjust prepared to meet the different process on the capacity requirements; using isobaric filling principle and popular spring-loaded valves, ensuring the quality of the beverage, using an advanced magnetic clutch adjustment screw cap torque device to ensure the quality of the blocks.
-

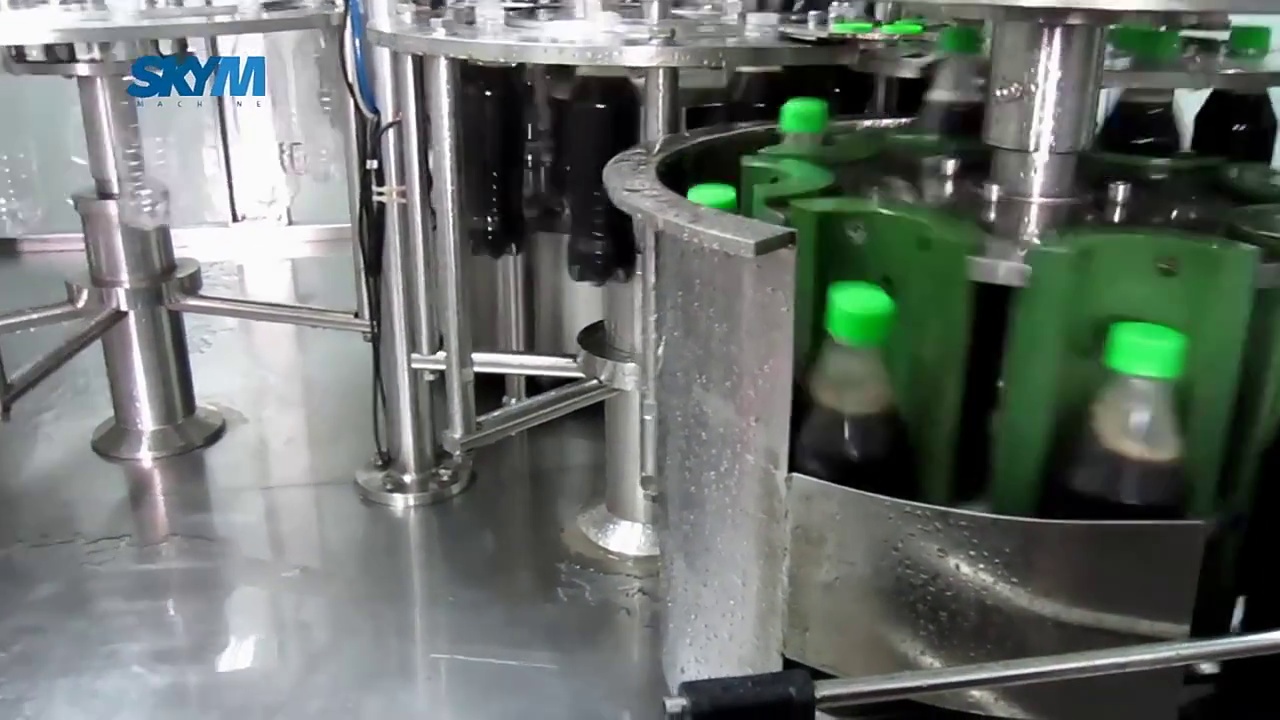

Capper
-

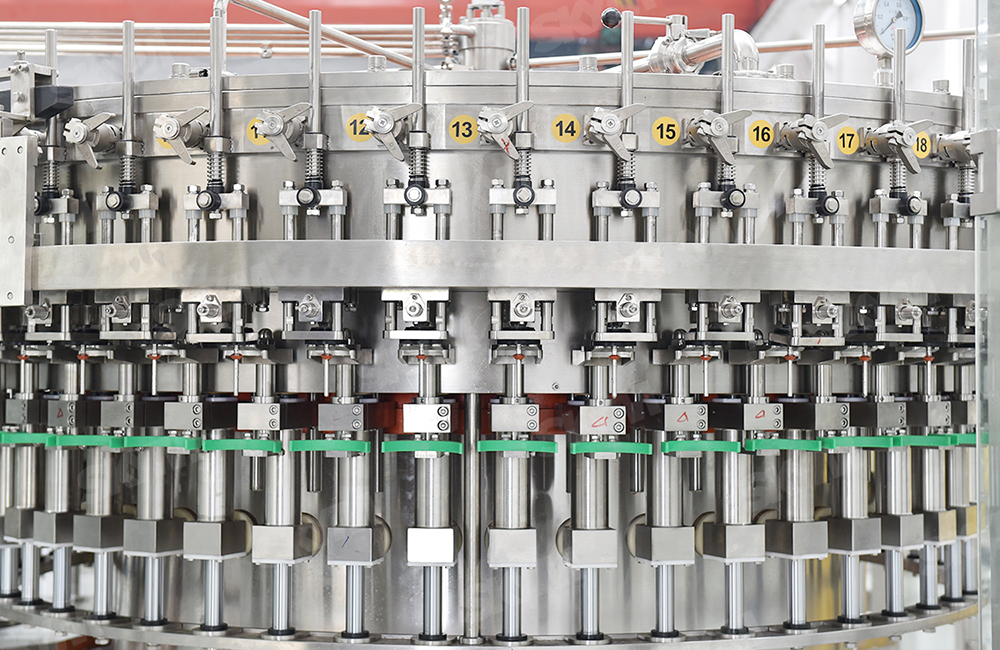

Filler
-

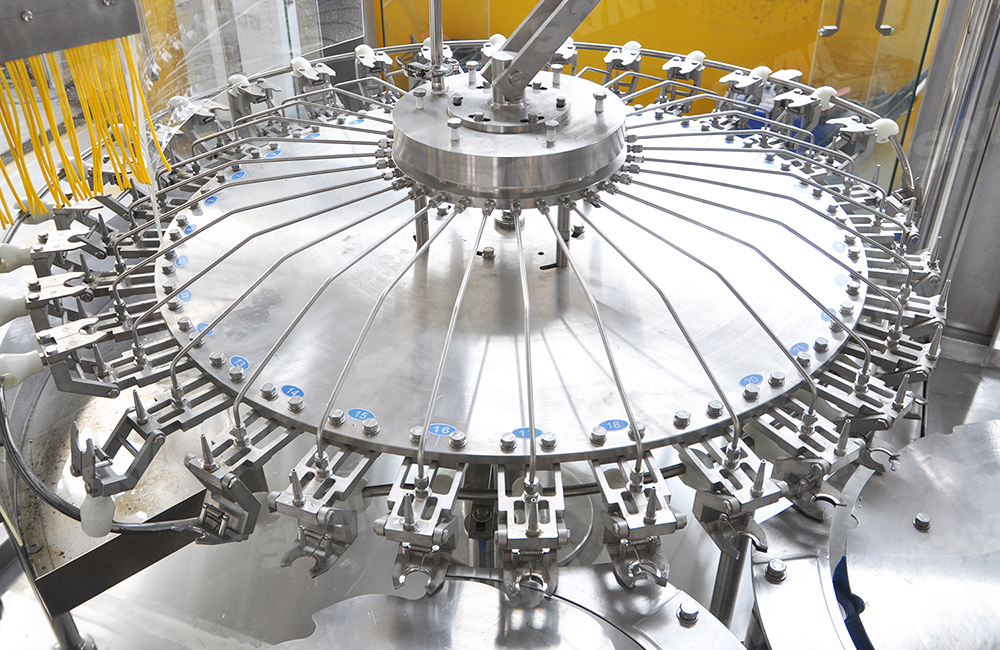

Rinser

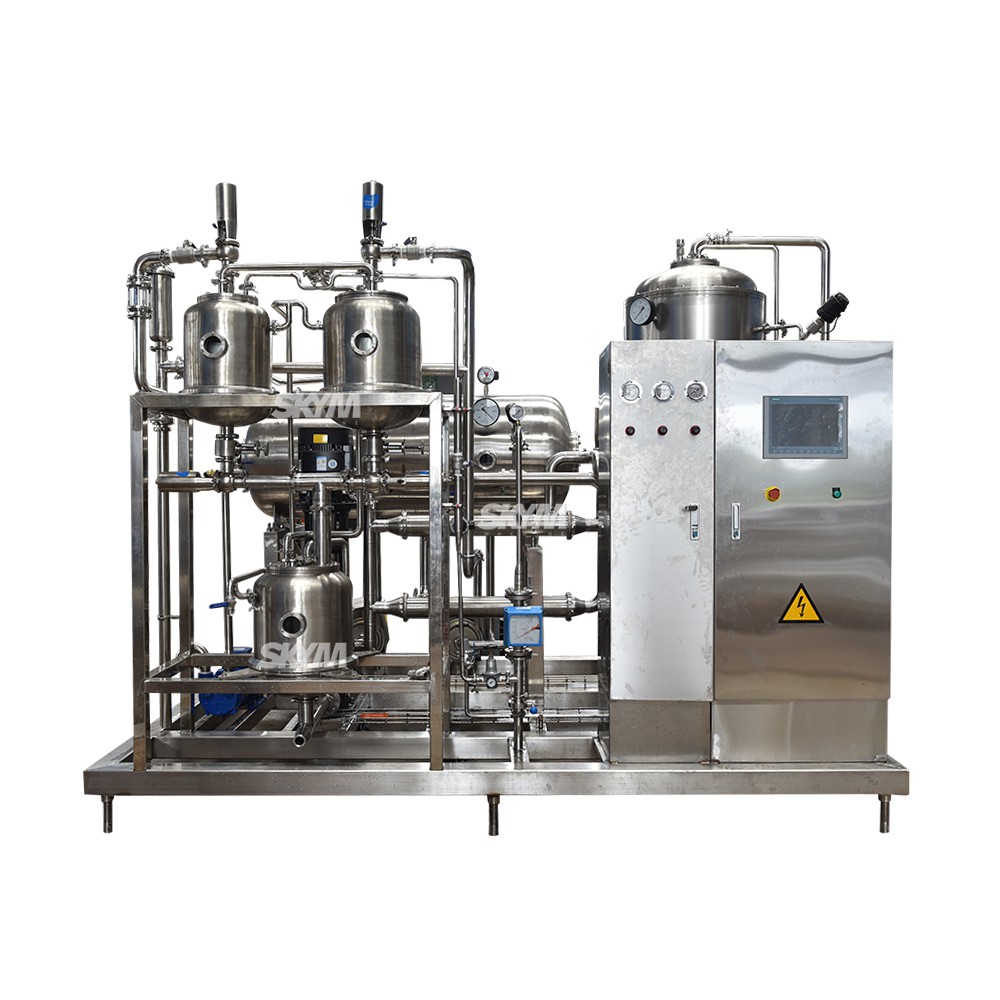

Beverage Drink Mixing Machine
This beverage mixer for the production of all kinds of carbonated beverage, (water, syrup, carbon dioxide) of carbonated proportions, such as lemon, cola, fruit juice and other soft drinks, beverage production line equipment is the main equipment. (In particular, the high-grade key beverage production equipment)
1 The machine with a chemical industry advanced technology - static mixer (ie carbonizer), its gas-liquid mass transfer area is large, small pressure loss, high efficiency, low energy consumption, simple structure, reliable performance and the use of noise small multi-stage centrifugal pumps, so that the whole performance is guaranteed.
2 Mixing ratio accurate, easy to adjust, the machine does not require replacement parts, you can easily yield and the ratio of syrup and water was adjusted.
3 Reflow machine uses carbon dioxide oxygen, carbon dioxide gas can save, but also to achieve the purpose of deoxy make deoxygenated water has a good pre-carbonization effect.
4 The machine easily adjust the air content, according to the requirements of beverage containing gas through proper operation and adjustment is completed.
5 The machine set up perfect automatic control system with motor coordination, simple structure, continuous production, automation features.
This beverage mixer for the production of all kinds of carbonated beverage, (water, syrup, carbon dioxide) of carbonated proportions, such as lemon, cola, fruit juice and other soft drinks, beverage production line equipment is the main equipment. (In particular, the high-grade key beverage production equipment)
1 The machine with a chemical industry advanced technology - static mixer (ie carbonizer), its gas-liquid mass transfer area is large, small pressure loss, high efficiency, low energy consumption, simple structure, reliable performance and the use of noise small multi-stage centrifugal pumps, so that the whole performance is guaranteed.
2 Mixing ratio accurate, easy to adjust, the machine does not require replacement parts, you can easily yield and the ratio of syrup and water was adjusted.
3 Reflow machine uses carbon dioxide oxygen, carbon dioxide gas can save, but also to achieve the purpose of deoxy make deoxygenated water has a good pre-carbonization effect.
4 The machine easily adjust the air content, according to the requirements of beverage containing gas through proper operation and adjustment is completed.
5 The machine set up perfect automatic control system with motor coordination, simple structure, continuous production, automation features.

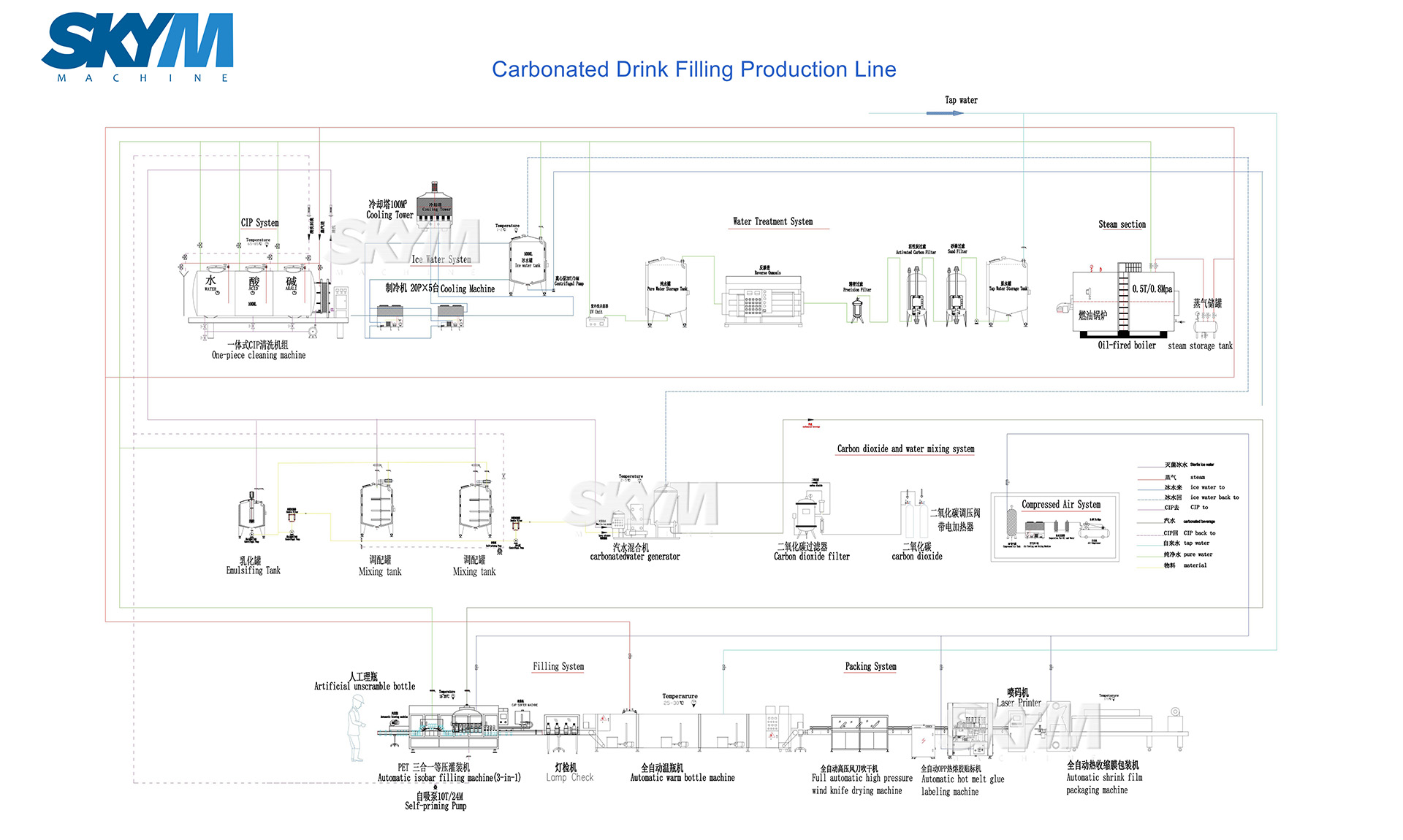

Flow Chart

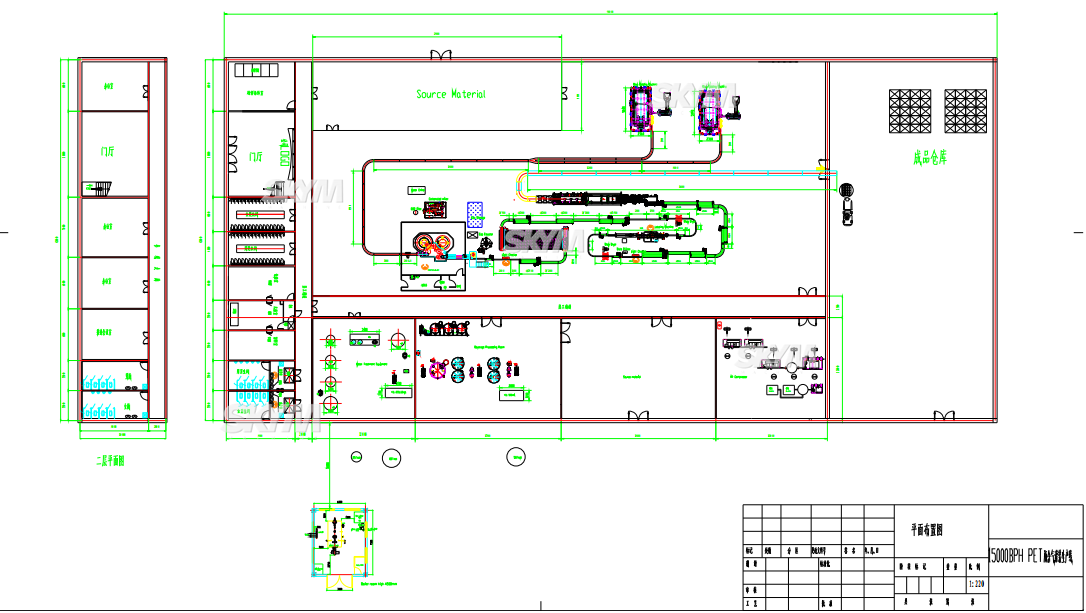

Soft Drink Customer Plant Layout
Parameter
|
Carbonated Soft Drink Filling Machine |
|||||||
|
Model |
DCGF 14-12-5 |
DCGF 16-16-5 |
DCGF 24-24-8 |
DCGF32-32-10 |
DCGF40-40-12 |
DCGF50-50-15 |
DCGF60-60-15 |
|
Bottle specifications(mm) |
200ml To 2000ml |
||||||
|
Capacity (350ml/bottle/hour) |
2000-3000 |
3000-4000 |
6000-8000 |
8000-10000 |
12000-15000 |
15000-18000 |
18000-25000 |
|
Power supply(kw) |
2.42 |
3.12 |
3.92 |
3.92 |
5.87 |
7.87 |
11.37 |
|
Overall dimension(L*W*H)MM |
2360×1770×2700 |
2760×2060×2700 |
2800×2230×2700 |
3550×2650×2700 |
4700×3320×2700 |
5900×4150×2700 |
6700×5160×2700 |
|
Weight (KG) |
2800 |
3650 |
4800 |
6000 |
7500 |
9800 |
11500 |
