Rotary OPP Hot Melt Labeling Machine
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
Descripition
1). Adopt wheel labeling way;

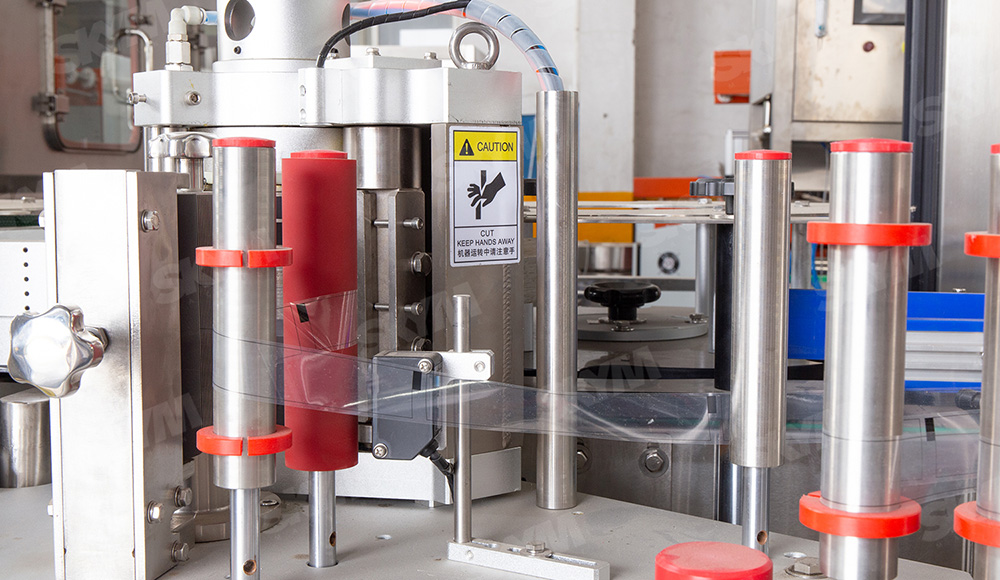

2). Label transmit via label wheel, run along the guide rail and operate the labeling work;
3). When the label through the appointed wheel, the sensor will automatically detect I-Mark;
4).Once confirms the electronic eye position, the demodulator will automatically adjustment the speed of wheel, and then appoints the label cutting position accurately.
5).The label through the wheels and then enter into the cutting part to carry out the label cutting work, the label cut will be
send to the vacuum-grip cylinder.
6). The containers which is transmitted by conveyor belt will be arranged properly via star wheel, then, the label which has been painted with glue will proceed the first labeling in the roller area, last, rely on the synchronous belt to proceed the last
labeling operation.
2). Label transmit via label wheel, run along the guide rail and operate the labeling work;
3). When the label through the appointed wheel, the sensor will automatically detect I-Mark;
4).Once confirms the electronic eye position, the demodulator will automatically adjustment the speed of wheel, and then appoints the label cutting position accurately.
5).The label through the wheels and then enter into the cutting part to carry out the label cutting work, the label cut will be
send to the vacuum-grip cylinder.
6). The containers which is transmitted by conveyor belt will be arranged properly via star wheel, then, the label which has been painted with glue will proceed the first labeling in the roller area, last, rely on the synchronous belt to proceed the last
labeling operation.
Feature:
1).The adjustment of label cutting blade is easy and simple.
2).Vacuum-grip cylinder is made of high hardness material, the additional old handler can reduce the frictions of labels and
prevent static electricity.
3).The change-over of shape pars can be finished within 10 minutes;
1).The adjustment of label cutting blade is easy and simple.
2).Vacuum-grip cylinder is made of high hardness material, the additional old handler can reduce the frictions of labels and
prevent static electricity.
3).The change-over of shape pars can be finished within 10 minutes;
Using Label
1).Label Material: OPP(roll type)
2).Label Specification: According to customers demands
3).Labeling Way: Straight-line hot melt glue labeling
1).Label Material: OPP(roll type)
2).Label Specification: According to customers demands
3).Labeling Way: Straight-line hot melt glue labeling

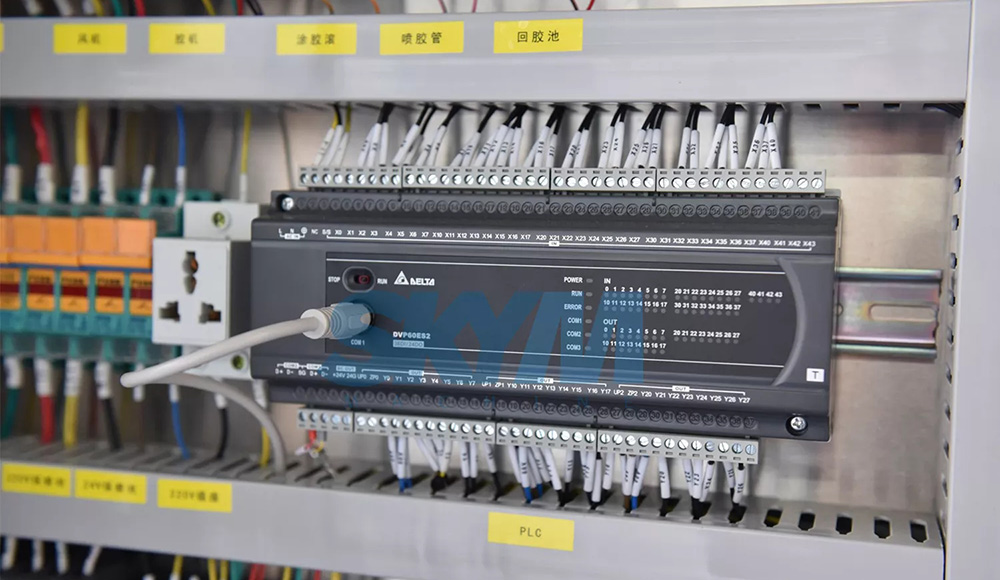

1).Control: Motion Controller, Frequency Converter.
2). Safety device
a. The drive part is equipped with overloaded protection device.
b. Abnormal state end device for star wheel
c. None bottle supply decor
d. Bottle Overload decor
2). Safety device
a. The drive part is equipped with overloaded protection device.
b. Abnormal state end device for star wheel
c. None bottle supply decor
d. Bottle Overload decor
Specification
|
Import Power |
3.0 Kw |
|
Import Voltage |
∮3, 380/220 VAC |
|
Production Capacity |
150 bottles/miute |
|
Dimension of Host Machine |
L2100mm × W850mm × H2000mm |
|
Applicable Diameter Container |
φ28 mm ~ φ120 mm |
|
Applicable Label Length |
30~250 mm |
|
Applicable Thickness Label |
0.03~0.13 mm |
|
Applicable Inner Diameter of Paper Tube |
5''~10'' |
